The Story

Ultra Low Noise Low Dropout Voltage Regulator designed for upgrading your GPS boards, GPSDO oscillators or DAC power lines. This board is compatible with LM317 or LM78xx series and can be easy upgraded. Boards have EMI shields for noise block.
LT3045 LM31X features:
  • Ultralow-noise LT3045 (0.8µV RMS) low-dropout linear regulators
  • 0 – 15V (Single output), 0.5A
  • LM317 TO220 Compatible Layout
  • Vertical or Horizontal Mount
  • EMI shield for noise block
LT3045 LM31X technical details:
  • Wide Input Voltage Range: 1.8V to 20V
  • Output Voltage Range: 0V to 15V
  • Output Current: 500mA
  • Low Dropout Voltage: 260mV
  • Ultralow RMS Noise: 0.8µVRMS (10Hz to 100kHz)
  • Ultralow Spot Noise: 2nV/√Hz at 10kHz
  • Ultrahigh PSRR: 76dB at 1MHz
  • Single Resistor Programs Output Voltage
  • Built-In Fixed Current Limit and Thermal Shutdown
  • PCB size: 25.4x15mm (approx. 1.0”x0.6”)
  • Vertical or Horizontal mount, compatible with most of the TO-220 package footprints
  • Operating Temperature Range:–40°C to 125°C
Package Includes:
  • 1 pcs Fully completed and tested LT3045 PCB

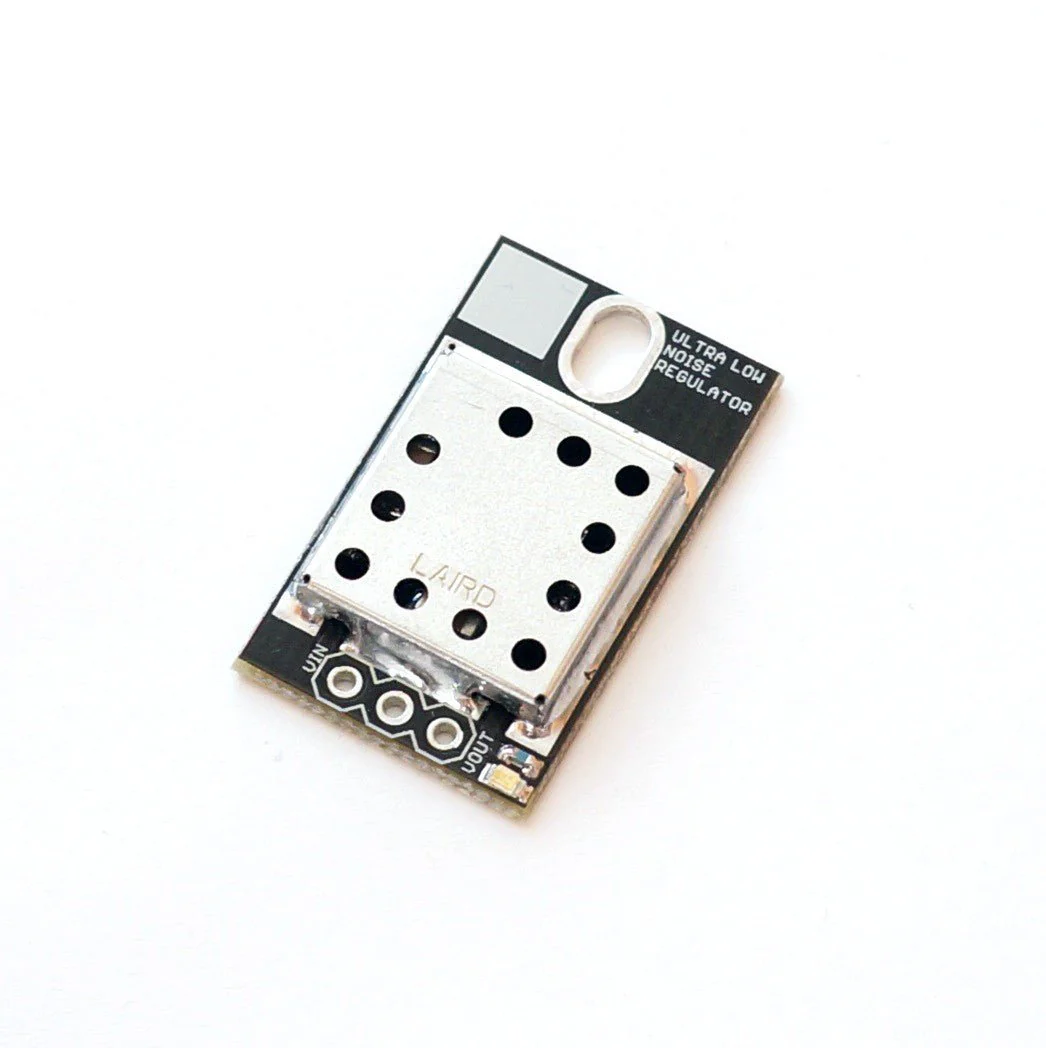

LT3045 LM31X compatible Ultra Low Noise LDO Voltage Regulator - Image 2
