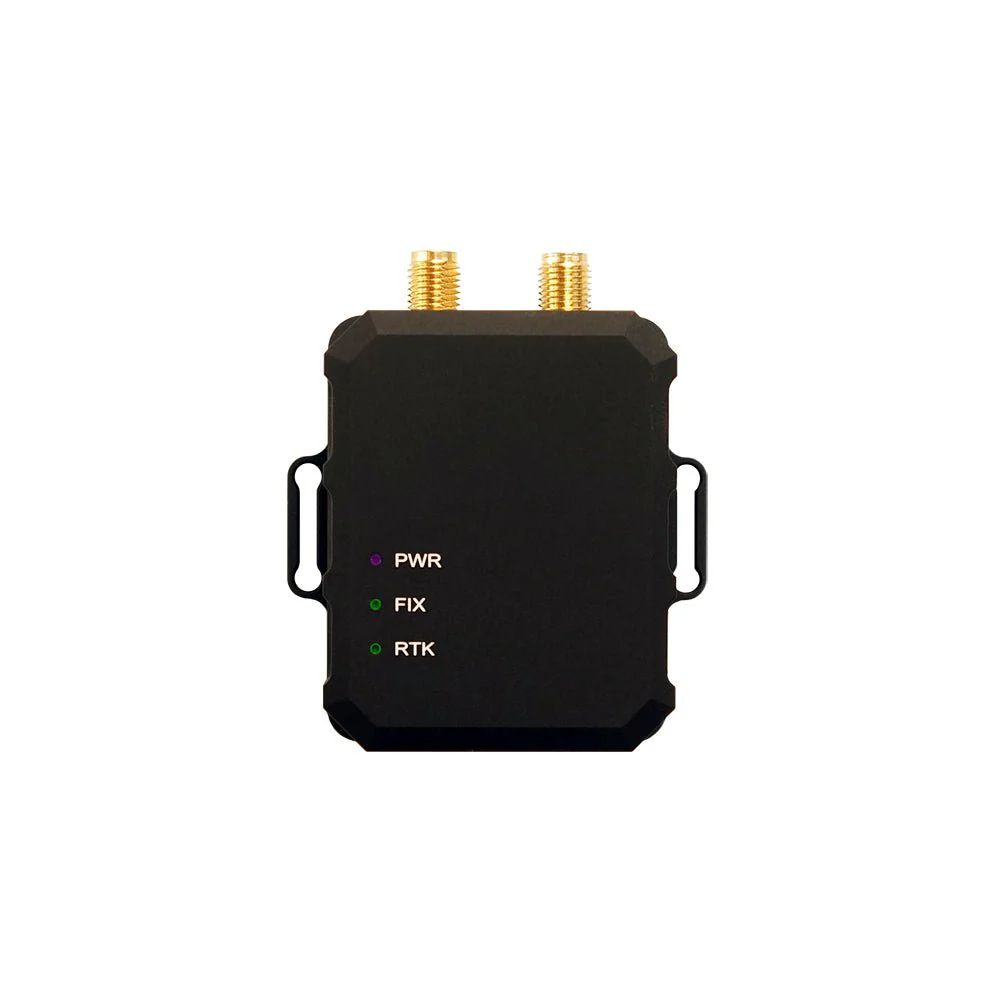

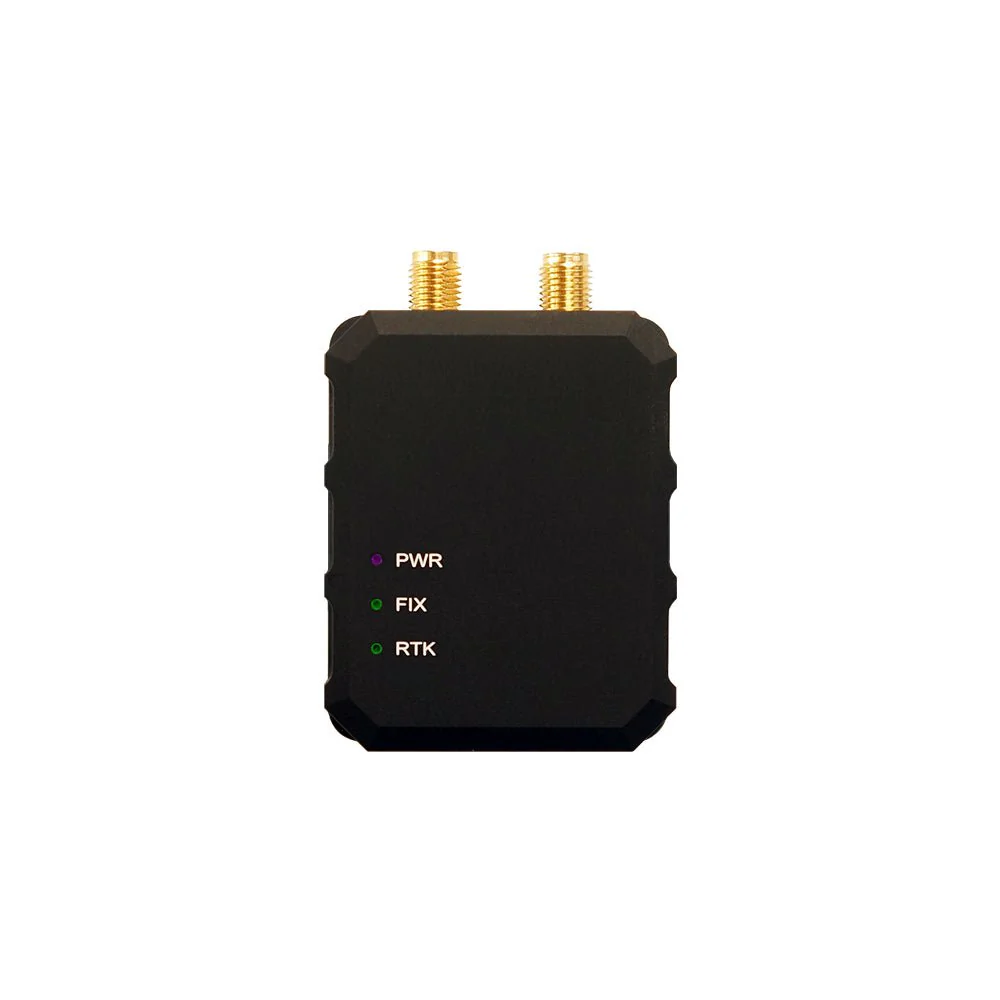

ZED-X20D INDUSTRIAL IP67 ALL-Band high precision GNSS module with heading

ZED-X20D INDUSTRIAL IP67 all-band high precision GNSS module with heading USB C Dongle with dual antenna SMA connectors. Multi-band receiver delivers centimeter-level accuracy in seconds.

ZED-X20D IP67 module is designed for dual-antenna applications requiring robust RTK positioning and precise heading information. It supports all major GNSS systems and bands, including L1, L2, L5, and L6, for maximum position availability, ensuring reliable positioning and heading performance even in challenging GNSS environments.

ZED-X20D integrates an all-band GNSS engine with innovative positioning algorithms using realtime kinematics (RTK), precise point positioning (PPP) and PPP-RTK technologies in a compact IP67 form factor. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements.

ZED-X20D IP67 module protects system integrity with multi-layered measures, including Root of Trust, jamming and spoofing detection, and cryptographic authentication of navigation messages through Galileo OSNMA. It offers support for a range of correction services, striking the perfect balance between performance and data usage.

ZED-X20D is ideally suited for precision agriculture (including heavy machinery), unmanned autonomous vehicles (UAVs), and other industrial applications requiring robust positioning and accurate GNSSbased heading. Furthermore, customers benefit from a trusted western supply chain, minimizing risk and securing long-term availability.

---

• On-board low noise 3.3V voltage regulator
• USB C interface
• SMA antenna connectors
• SMA heading antenna connectors
• u-center2 ublox Evaluation Software
• Extensive visualization and evaluation features
• Heading LED Time pulse LED, RKT status LED
• Backup supercapacitor
• Dimensions: 50x40x18 mm
• Fully assembled and ready to use
• Weight 55 gramm

• Working temperature: -40 °C ~ +85 °C
• Storage temperature: -55 °C ~ +95°C
• Humidity: 95% No condensation
• Vibration: MIL-STD-810F
• Shock: MIL-STD-810F
