$85.76The Story

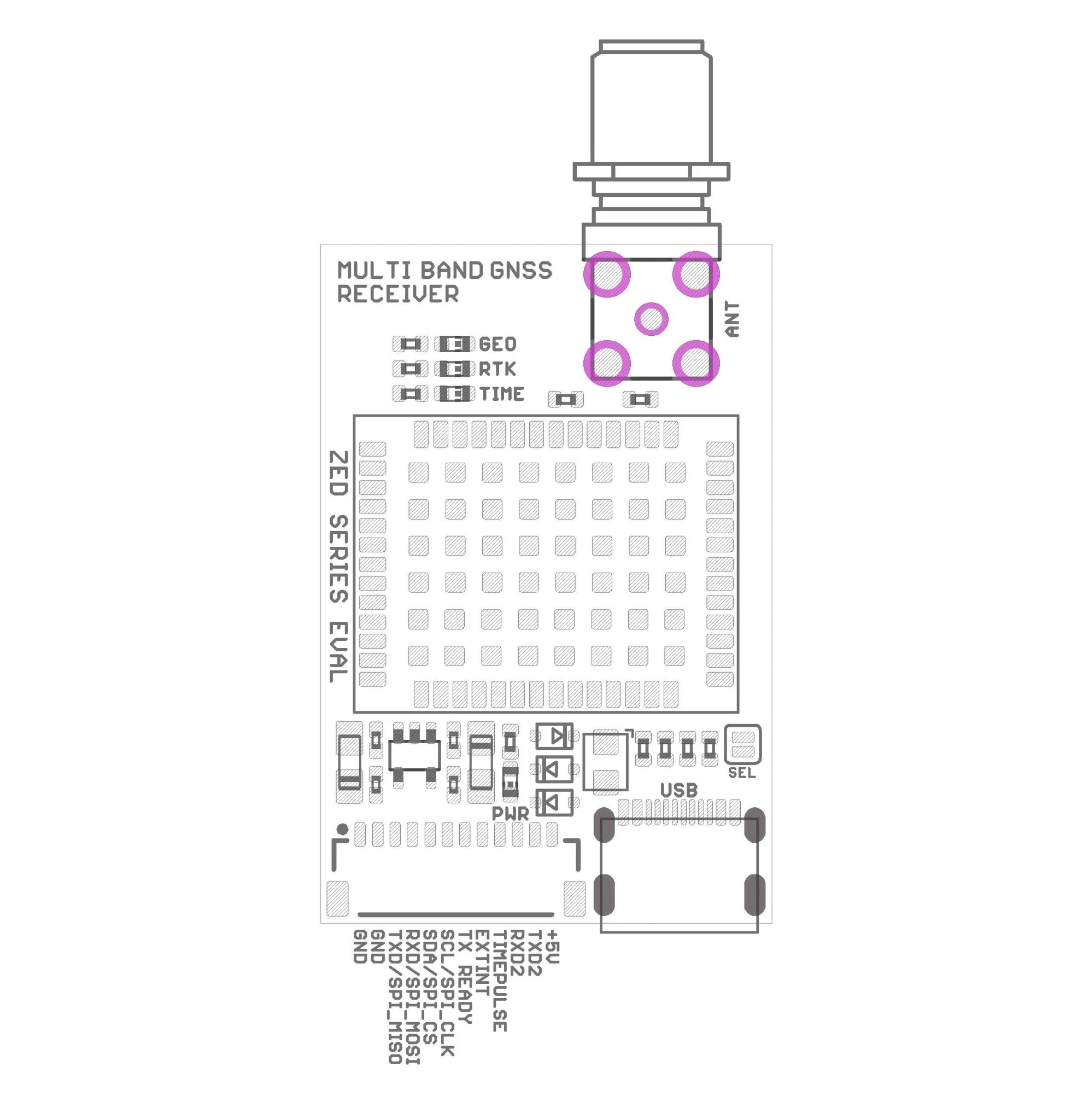

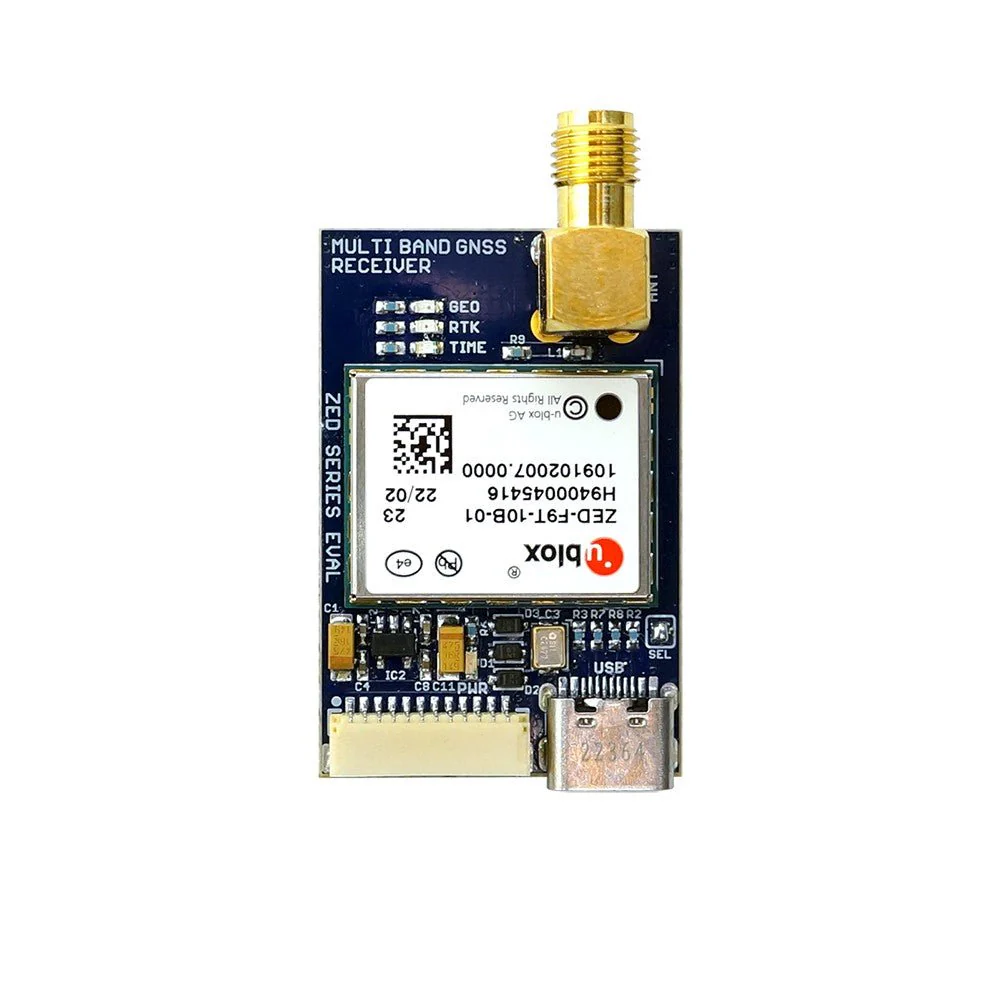

ZED-F9T-10B L1/L5/E5a high accuracy USB C timing EVAL module I2C, UART, SPI with SMA antenna connectors.
PIN to PIN compatible with ELT0141
The ZED-F9T-10B L1/L5/E5a timing module is an advanced solution for infrastructure applications, offering unparalleled nanosecond-level timing accuracy. Its design specifically caters to the rigorous timing synchronization requirements of 5G networks on a global scale. Operators using the ZED-F9T-10B L1/L5/E5a can maximize their network's performance and optimize their investment in 5G communications by significantly reducing time errors in cellular network synchronization.
Remarkably, the timing module achieves timing accuracy of less than 5 ns even under clear skies, eliminating the need for an external GNSS correction service. Moreover, it incorporates innovative differential timing modes that allow for the exchange of correction data with neighboring GNSS timing receivers through a communication network, further enhancing local accuracy. The module's access to all four satellite constellations enhances its ability to deliver reliable performance.
Ensuring the highest level of timing integrity, the ZED-F9T-10B L1/L5/E5a incorporates advanced security features such as secure boot, secure interfaces, and T-RAIM. These features provide reliable protection against potential threats.
To enhance signal selectivity and out-of-band attenuation, the module employs a single RF input for all GNSS bands and dual SAW filters. This ensures exceptional performance and reliability in signal reception.
Overall, the ZED-F9T-10B L1/L5/E5a timing module is a cutting-edge solution developed to meet the demanding needs of infrastructure applications, particularly in the realm of 5G networks. Its outstanding precision, multi-band capability, and advanced security features make it a reliable choice for operators seeking optimal performance and efficiency.
- On-board Ultra low noise 3.3V voltage regulator with noise 2nV/Hz
- USB type C, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- SMA antenna connectors
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED
- Backup supercapacitor
- Dimensions: 38x22 mm
- Weight: 9 gr.
- Fully assembled and ready to use
- 12 JST SH connector
