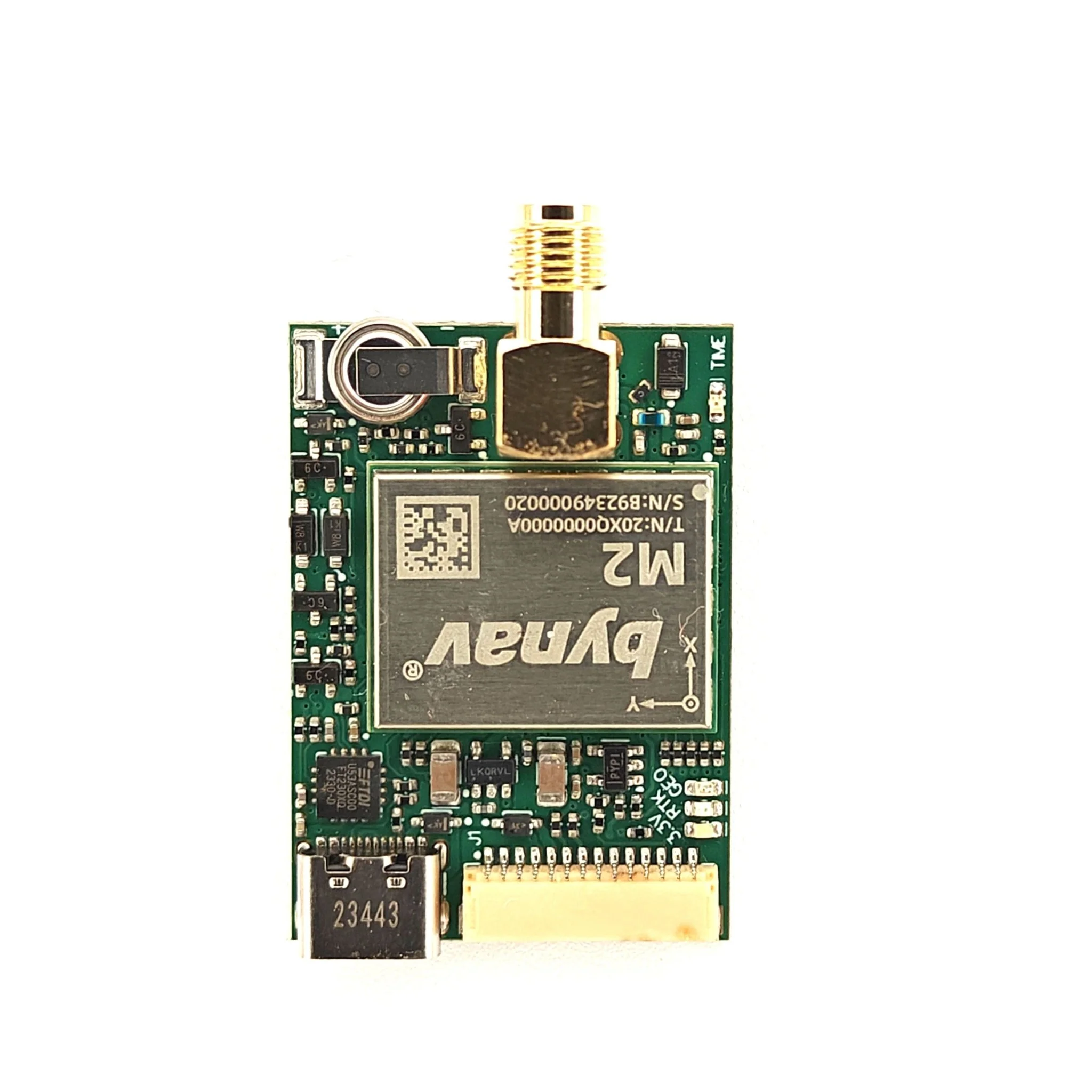

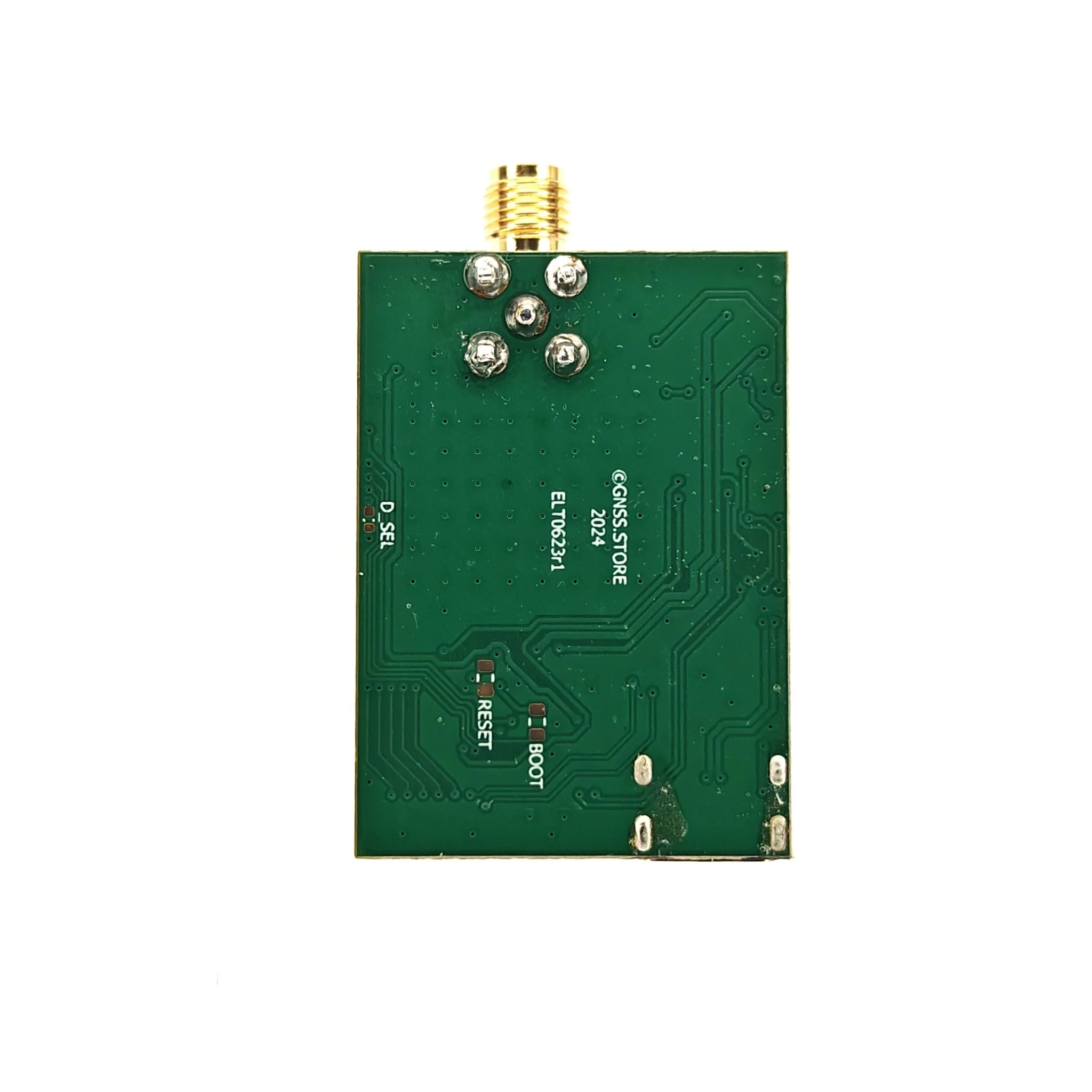

M20 RTK GNSS receiver board with USB C and JST

Bynav M20 All-constellation Multi-frequency High Precision RTK GNSS receiver.

M20 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.

---

• Antenna input with SMA connectors
• On board low noise 3.3 V voltage regulator
• USB, SPI*, and UART (Tx, Rx) interface

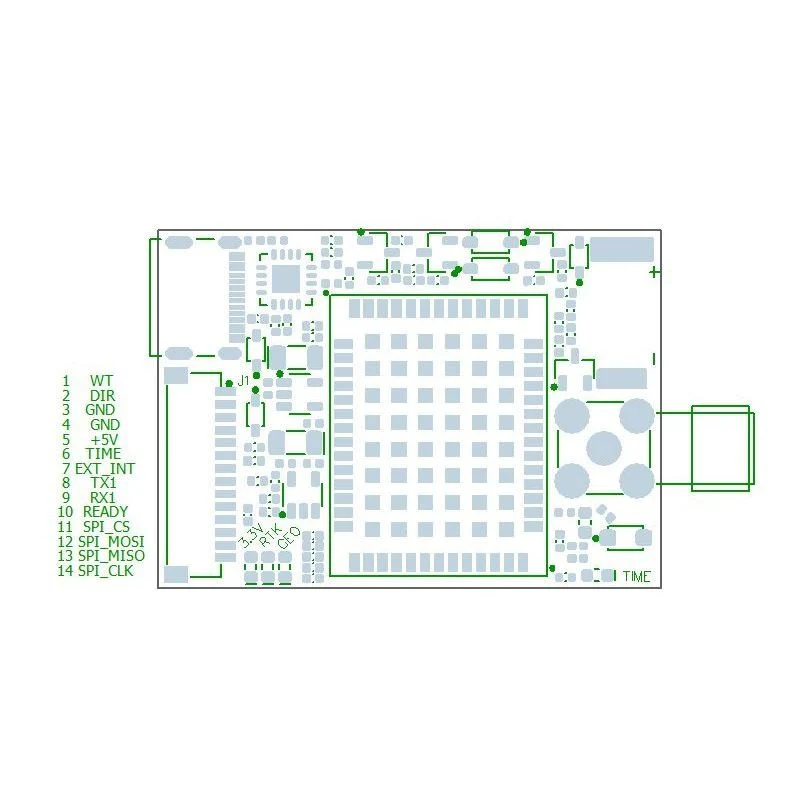

• USB C and 12 PIN JST SH connectors
• Time pulse LED, Power LED, RTK LED, Geofence LED
• BY_Connect Bynav Evaluation Software
• Extensive visualization and evaluation features
• Backup supercapacitor
• Dimensions 26x39 mm
• Weight: 10 gr.
• Fully assembled and ready to use
