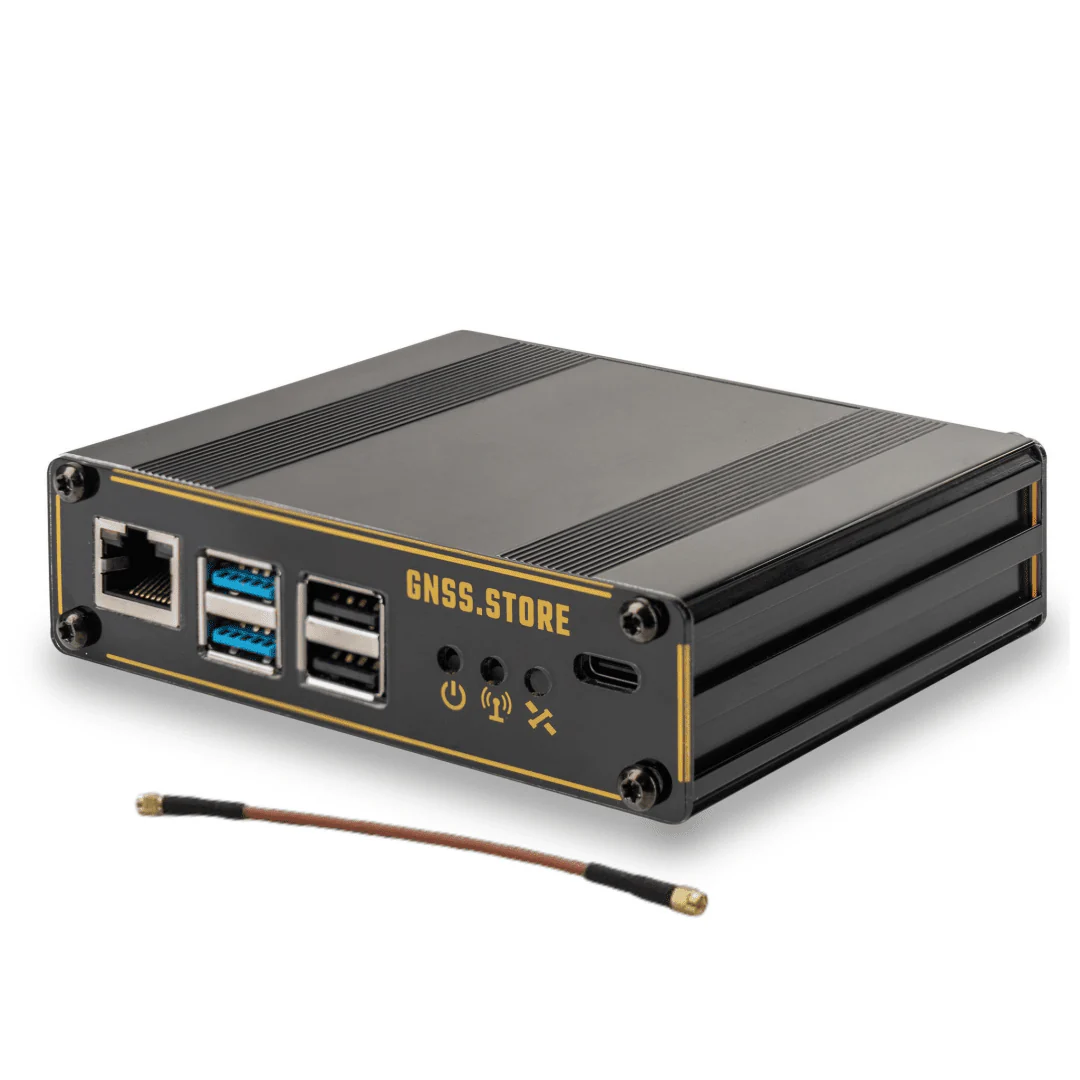

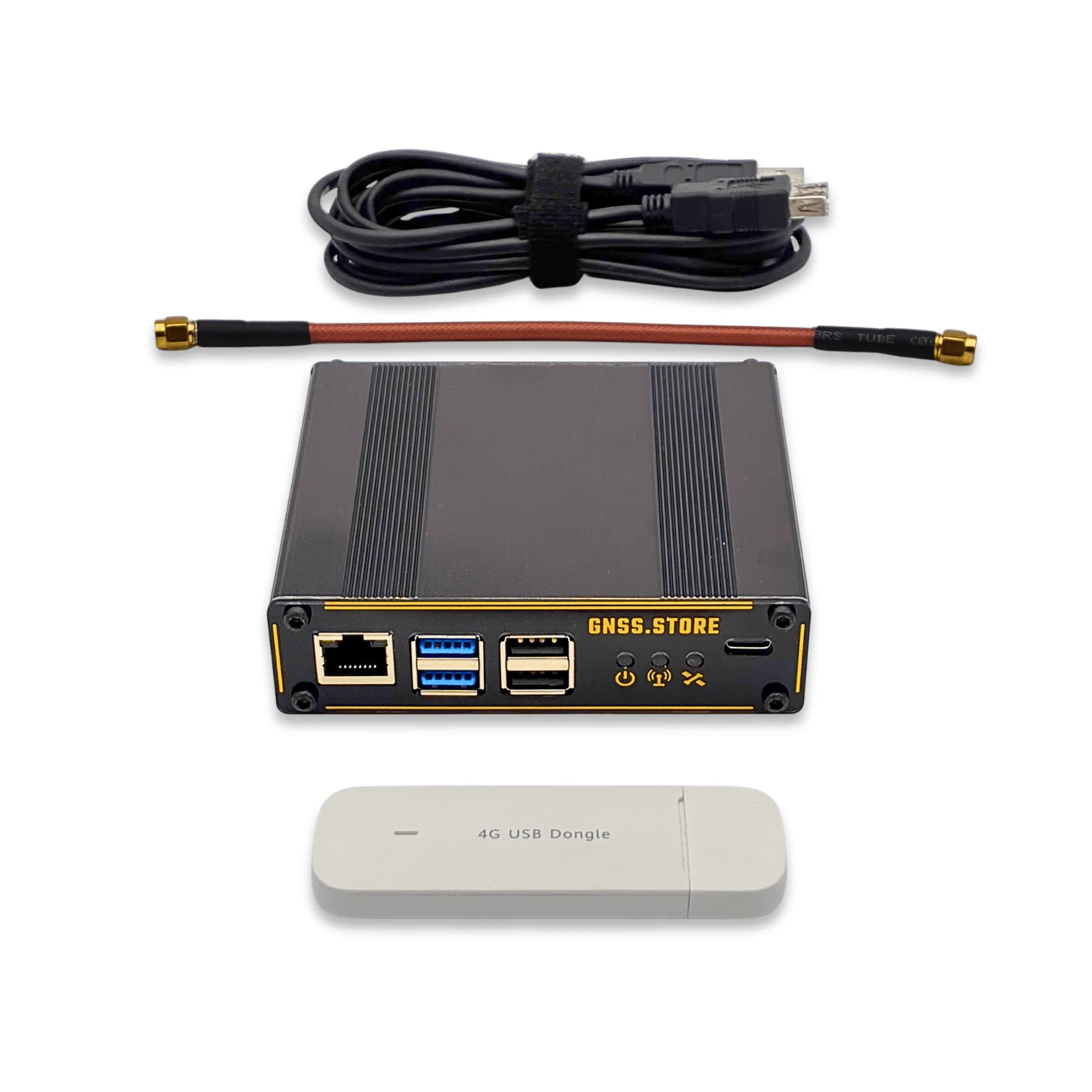

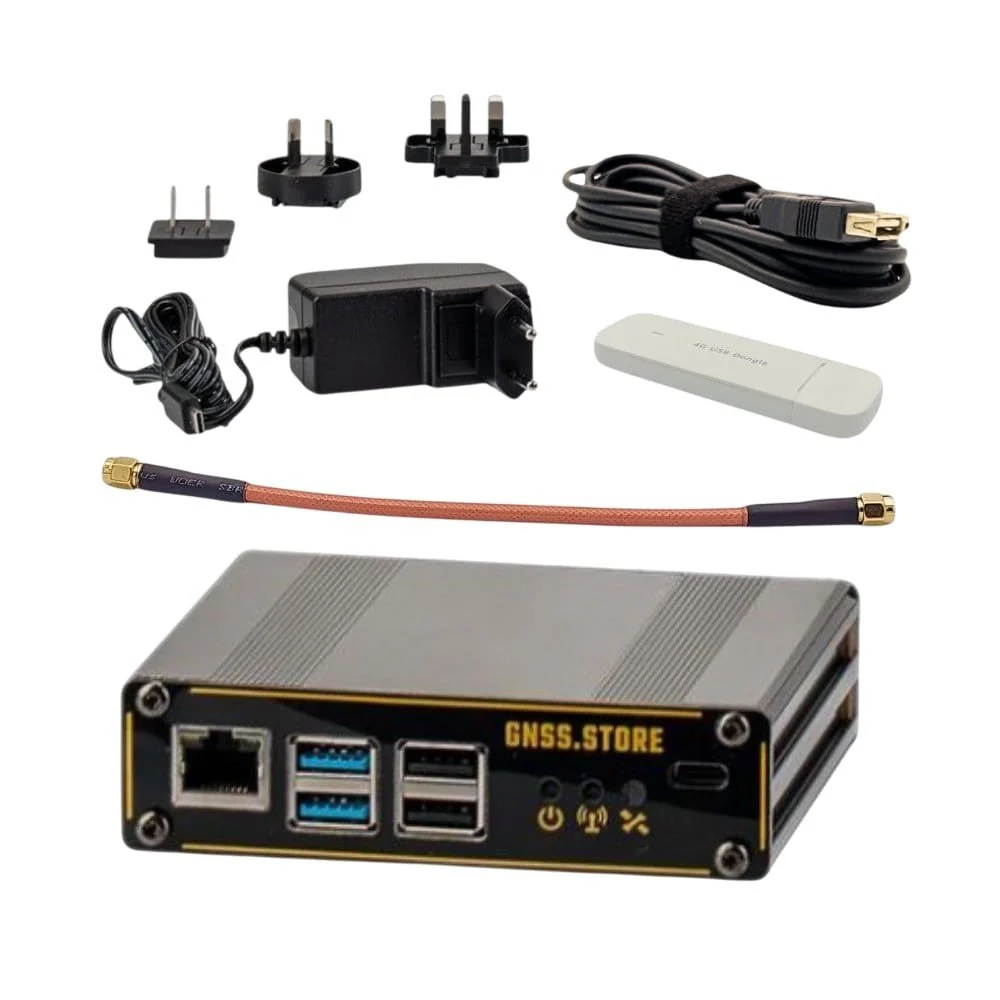

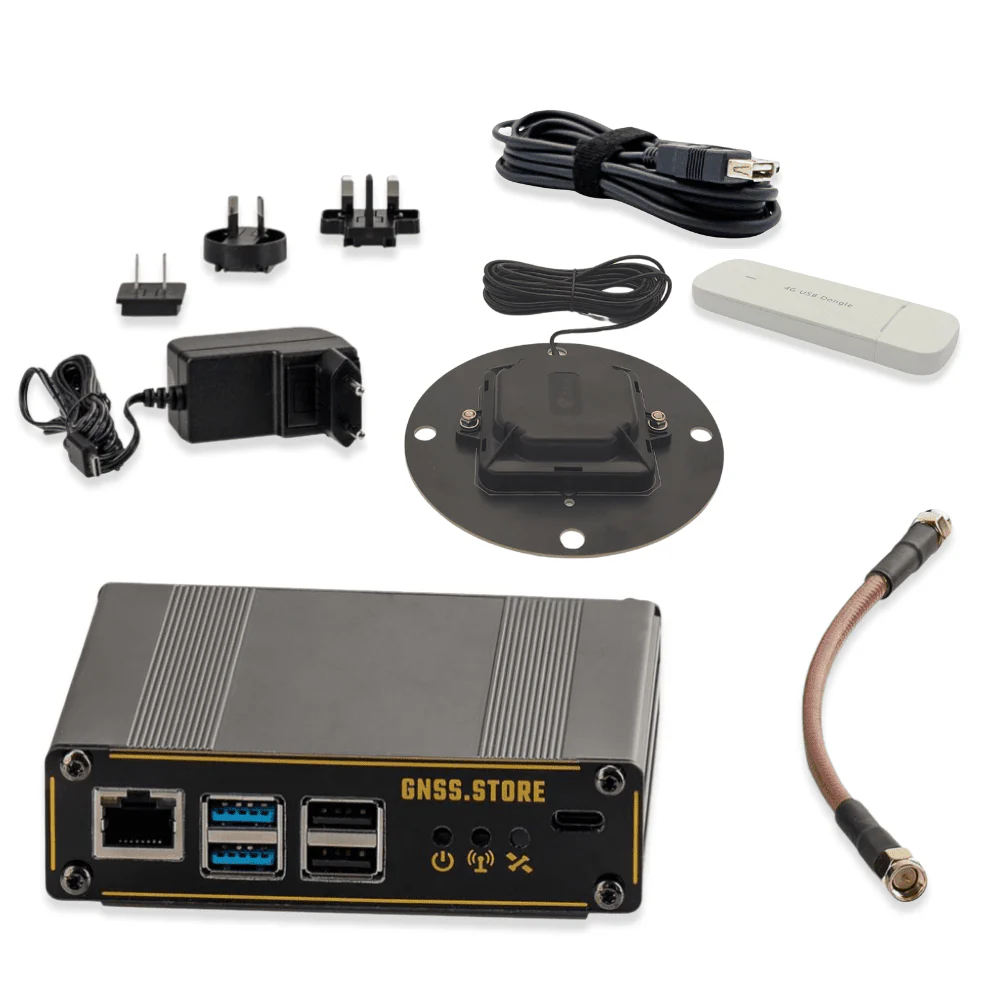

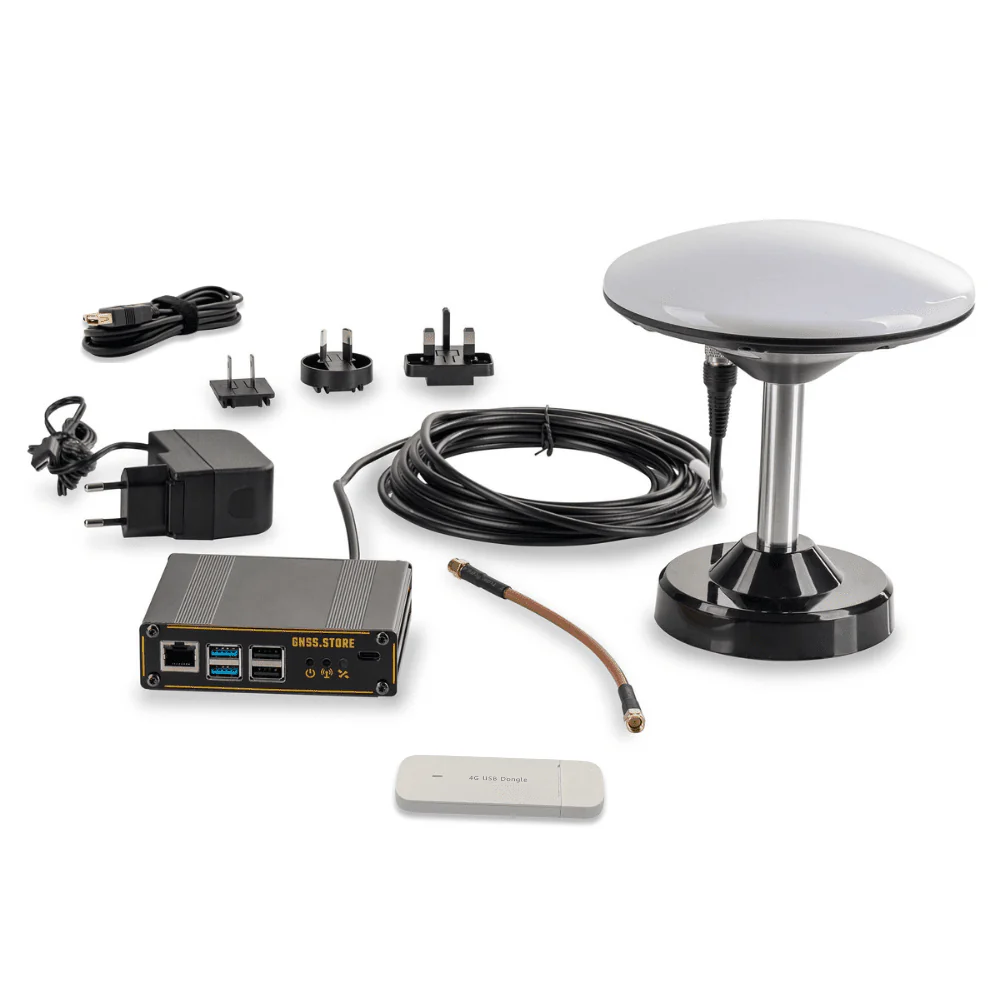

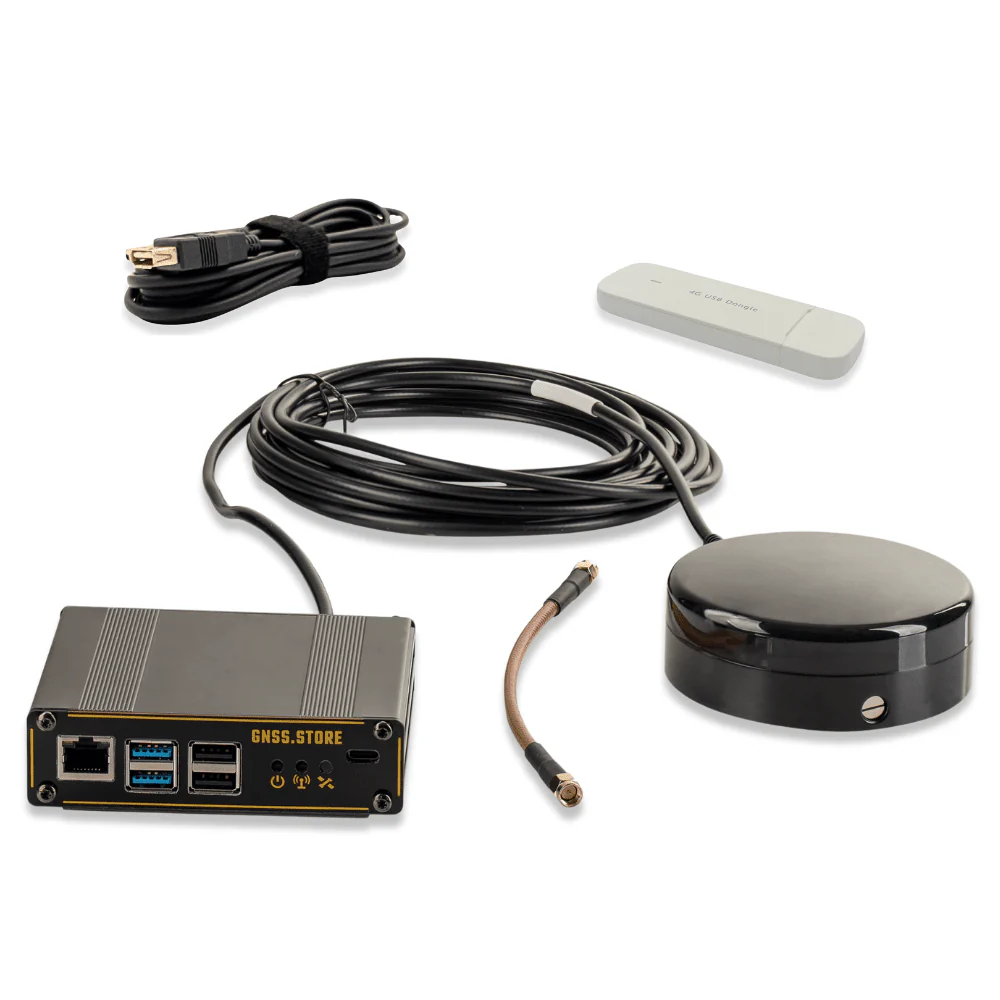

M20 GNSS RTK CORS Fanless Station

M20 All-constellation Multi-frequency High Precision RTK GNSS receiver

M20 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.

These blog articles will help you set up your miners:

• Getting Started
• NTRIP Configuration For Onocoy

---

• Fanless setup, passive cooling
• Build-in RF splitter for direct connection in multi-receiver setup
• Raspberry-PI RPI4-MODBP-2GB
• BCM2711 SOC, ARM  Cortex-A72@1.5GHz
• WiFi 2.4 and 5GHz 802.11 b/g/n/ac, Bluetooth 5.0 BLE
• ELT_RtkBase full-featured software
• ELT_RTKBase User Guide
• microSD card 32GB with pre-installed software and documentation
• GNSS antenna input with SMA connector
• Gigabit Ethernet port with optional PoE support
• PoE is compliant with IEEE 802.3af-2003
• Time pulse LED, Ethernet LED
• Backup supercapacitor
• Dimensions 110x95x30 mm
• Weight: 245/265 gr
• Fully assembled and ready to use
• Extensive mounting options - check accessories in the related products list
