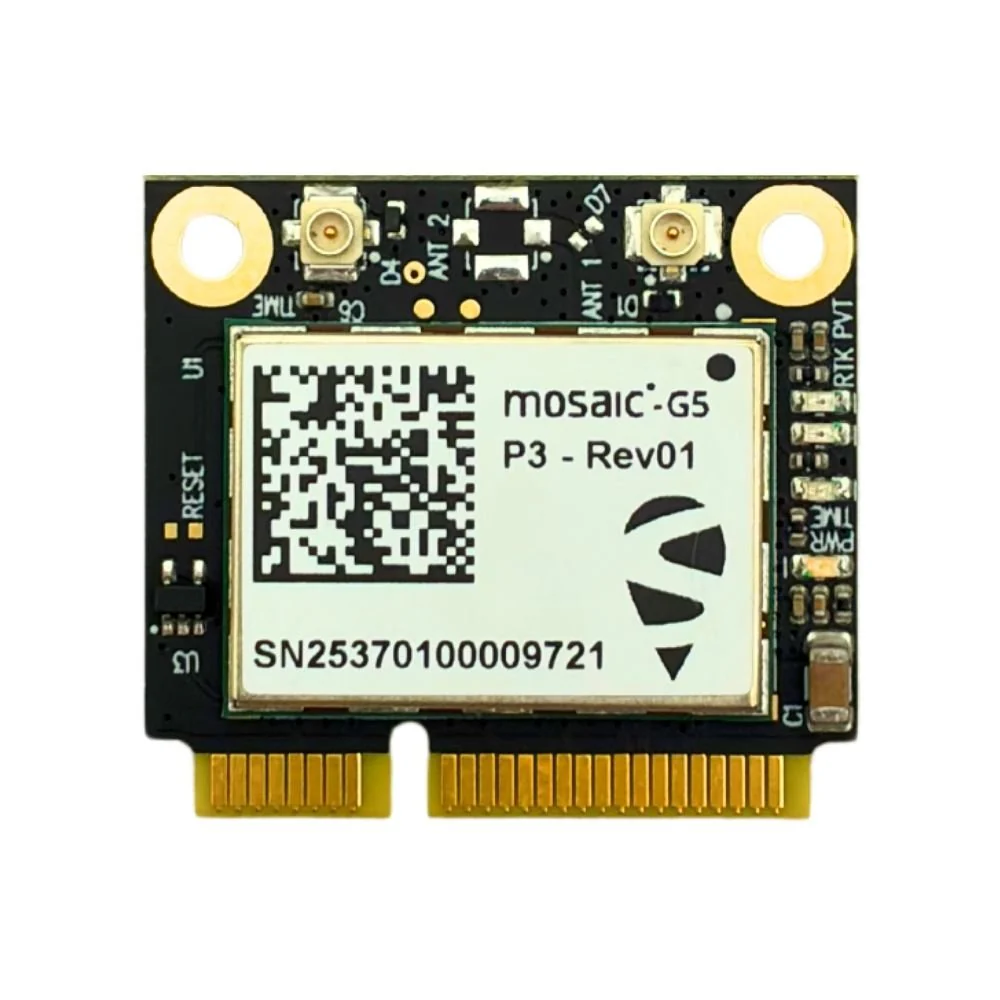

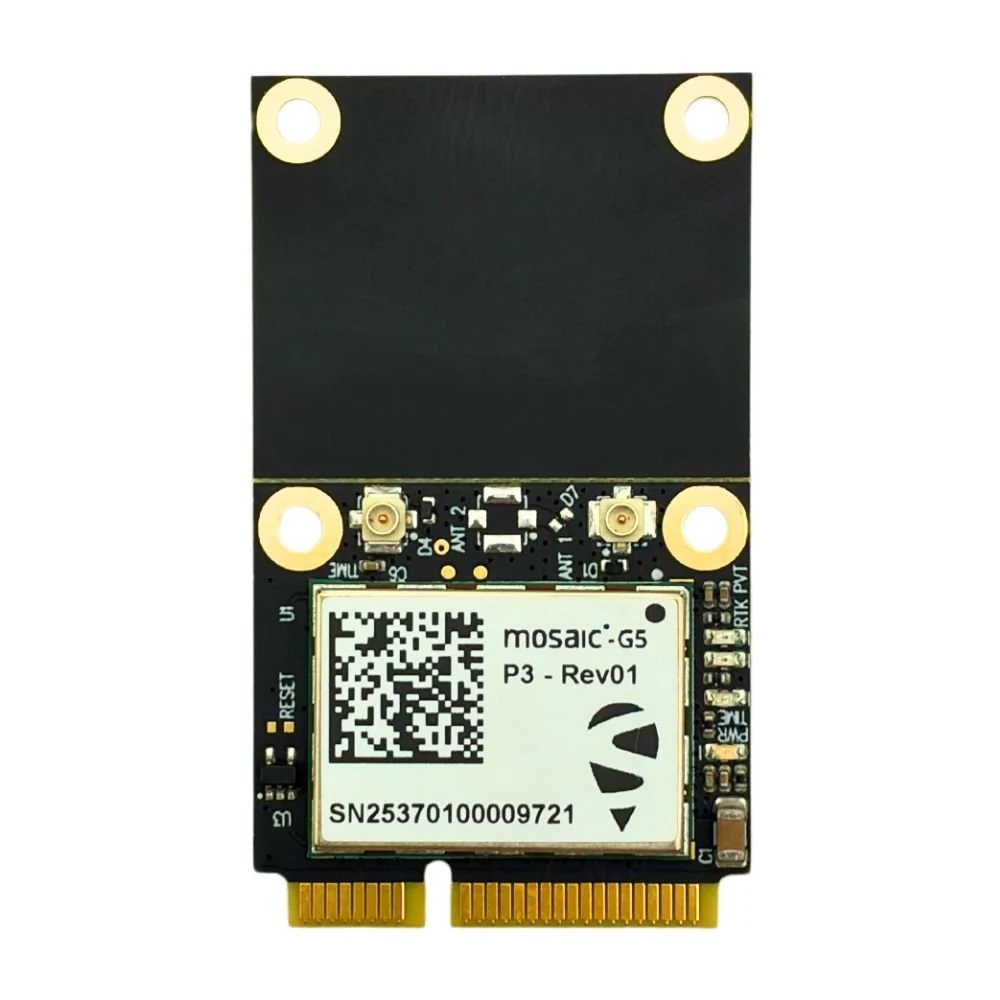

mosaic-G5 P3 mPCIe socket RTK GNSS receiver

mosaic-G5 P3 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 P3 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation
APME+ a posteriori multipath estimator for code and phase multipath mitigation
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring

---

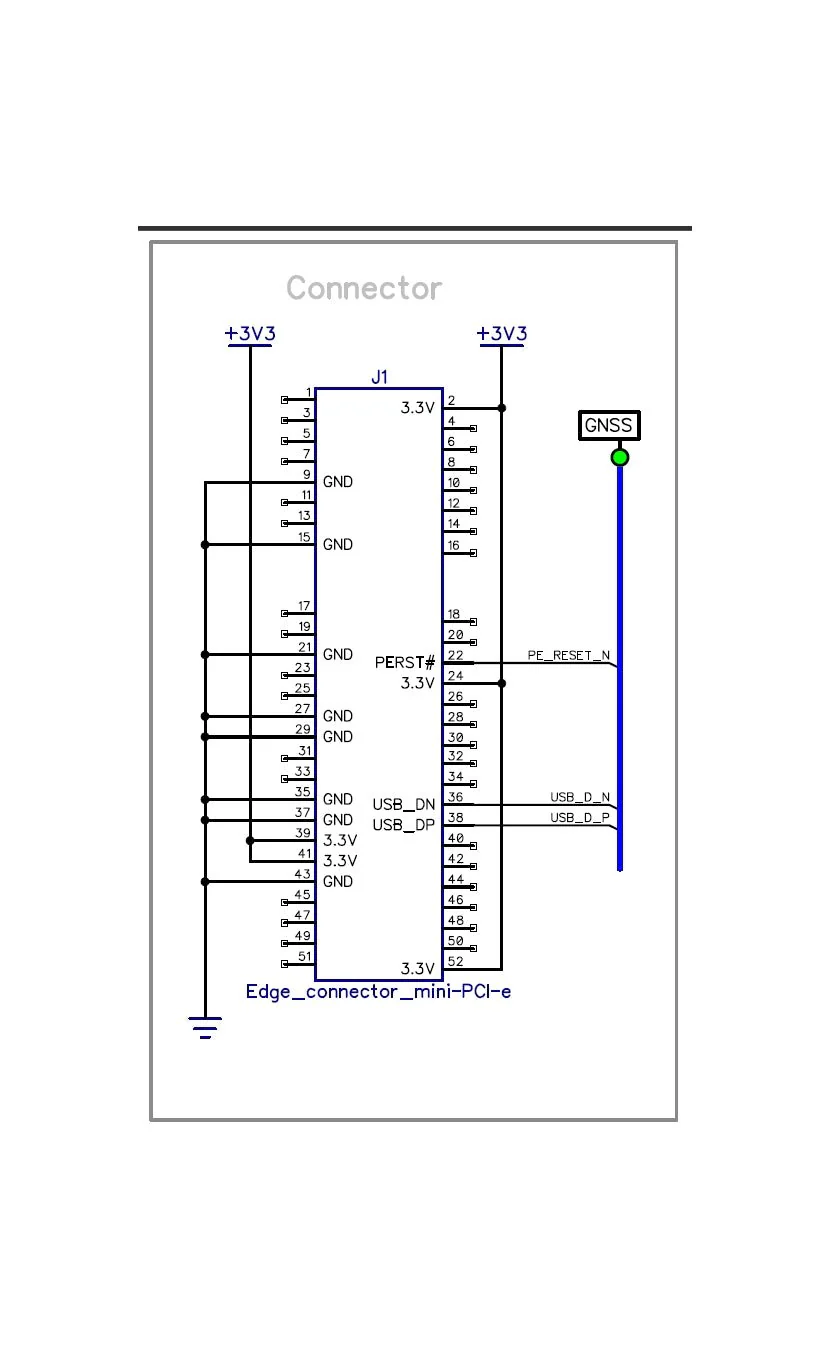

• Full size mini PCI express compatible
• Antenna input with IPEX connector
• Only USB interface used
• Time pulse LED: Green, Power LED: purple, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Backup supercapacitor
• Dimensions 30x51 mm
• Weight: 10 gr.
• Fully assembled and ready to use

WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243

---
