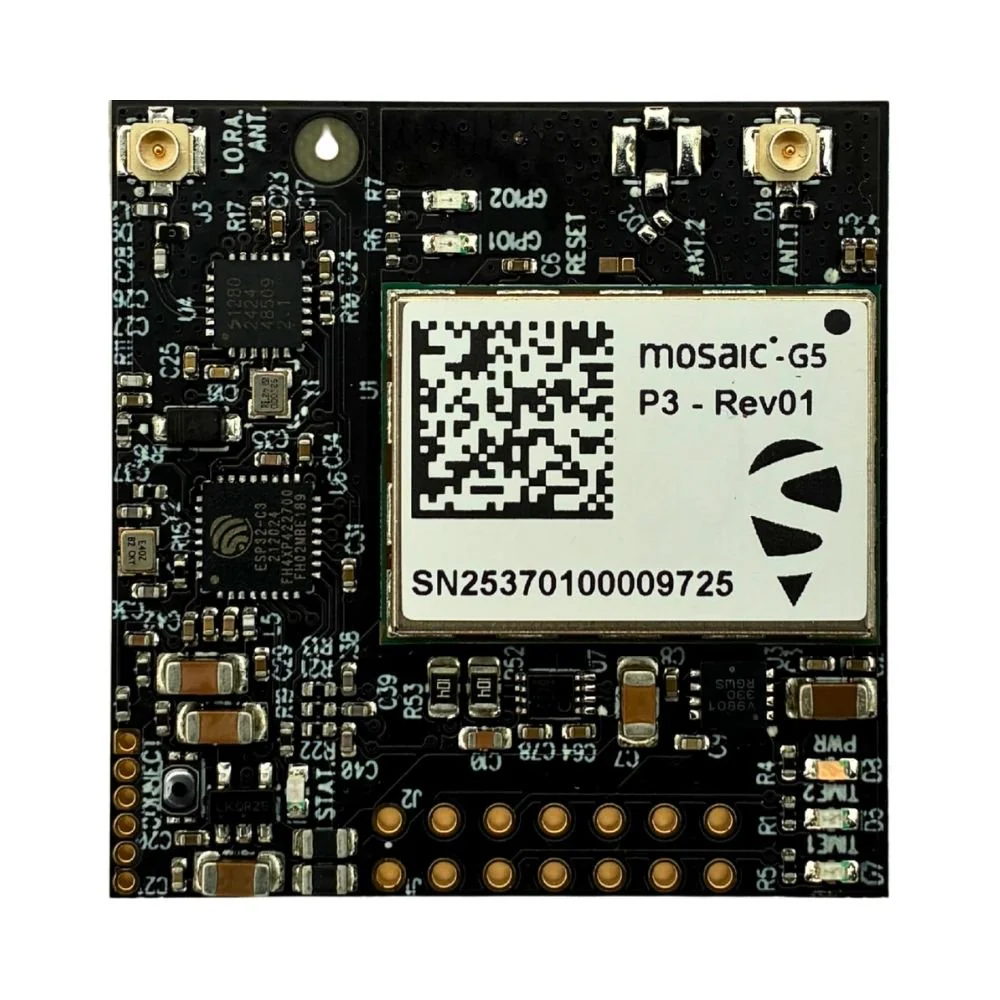

mosaic-G5 P3 RTK with LoRa technology GNSS receiver board

mosaic-G5 P3 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver.

mosaic-G5 P3 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy, making it ideal for surveying, agriculture, construction, drones, and multi-drone swarms without relying on mobile networks. It tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation
APME+ a posteriori multipath estimator for code and phase multipath mitigation
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring

---

An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station.

This makes it especially suitable for:

• Surveying and construction – reliable corrections without mobile networks.
• Precision agriculture – cost-effective guidance for tractors and field equipment.
• Drones and UAVs – lightweight, power-efficient correction channel.
• Drone swarms and multi-drone operations – one base station can serve many drones simultaneously, ensuring synchronized, high-precision positioning.
• Autonomous robots and vehicles – dependable local infrastructure for navigation.

In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.

• GNSS antenna input with IPEX connector
• LoRa antenna input with IPEX connector
• LoRa configuration switch
• USB and one UART with hardware flow control interface
• Technological MCU programming 6-pin connector
• EVENTA, EVENTB: 3.3V LVTTL, 5V-tolerant, protected, high-impedance external event inputs
• PPS output (3.3V)
• Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 34x36 mm
• Weight: 10 gr.
• Fully assembled, tested and ready to use
