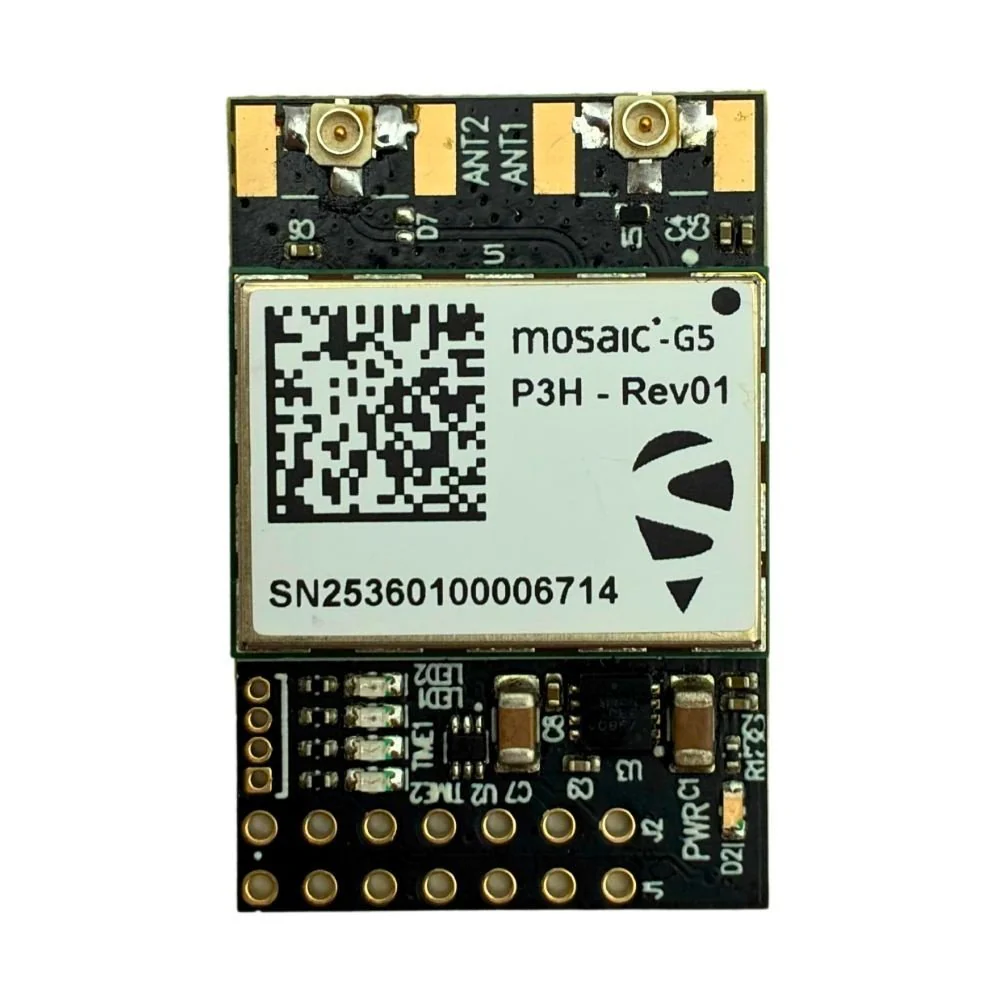

mosaic-G5 P3H Dual Channel RTK InCase PIN GNSS receiver board

mosaic-G5 P3H all-constellation dual channel multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 P3H high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation
APME+ a posteriori multipath estimator for code and phase multipath mitigation
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring

---

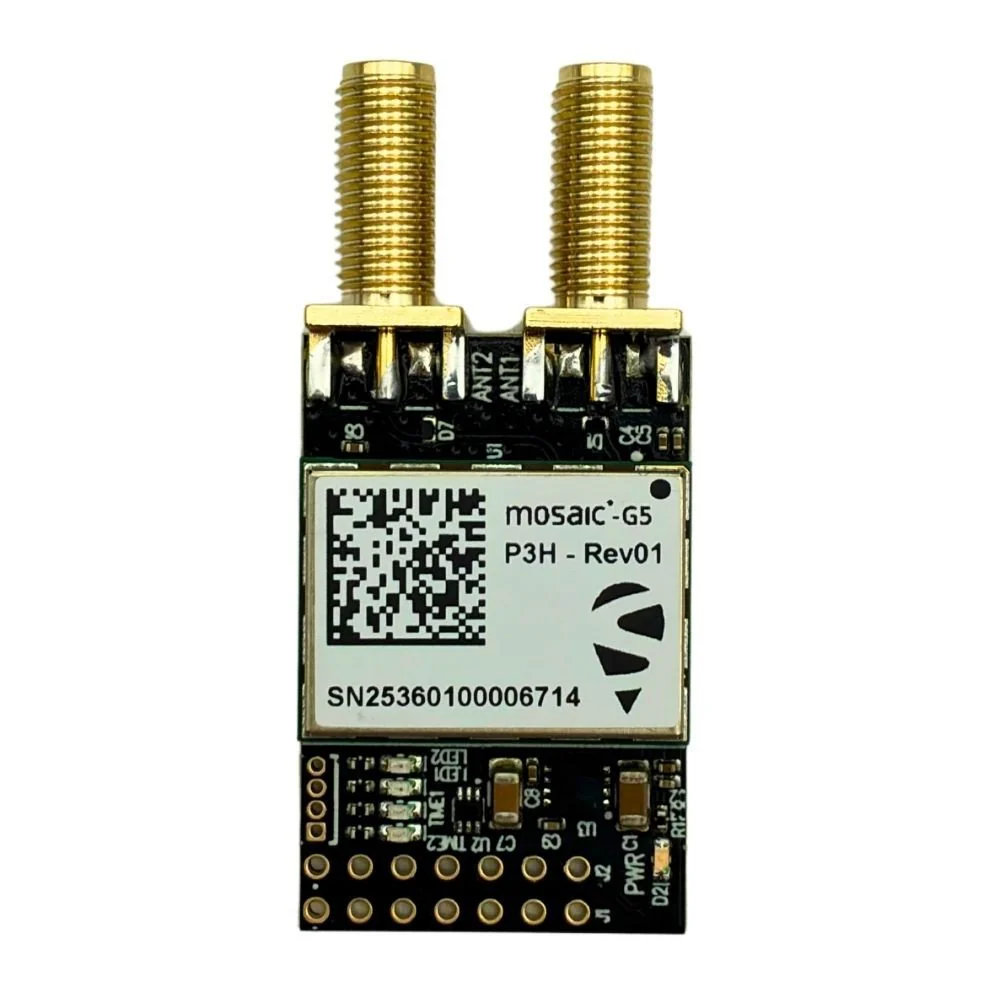

• Two antenna inputs with SMA or IPEX connector
• USB and 2 UART (3.3V)
• EVENTA external event input (3.3V)
• PPS output (3.3V)
• Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 24x38 mm
• Weight: 10 gr.
• Fully assembled, tested and ready to use

WARNING: RX and EVENT inputs shall not be driven while input supply not present.

---
