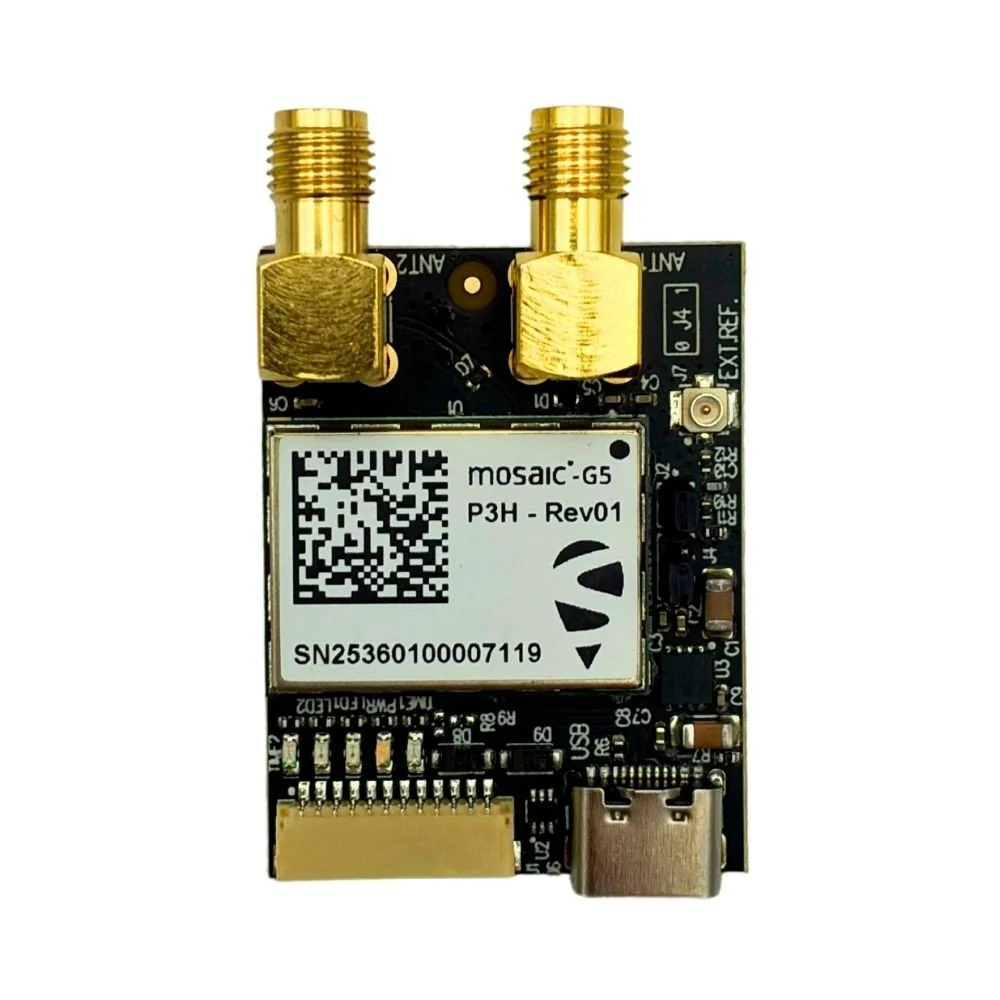

mosaic-G5 P3H Dual Channel RTK GNSS receiver board with USB C and JST

mosaic-G5 P3H is a dual-channel, multi-frequency, high-precision RTK GNSS receiver designed for top-performance applications. It is a high-reliability receiver that tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation
APME+ a posteriori multipath estimator for code and phase multipath mitigation
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring

---

• Two antenna inputs with SMA or IPEX connector
• USB C connector

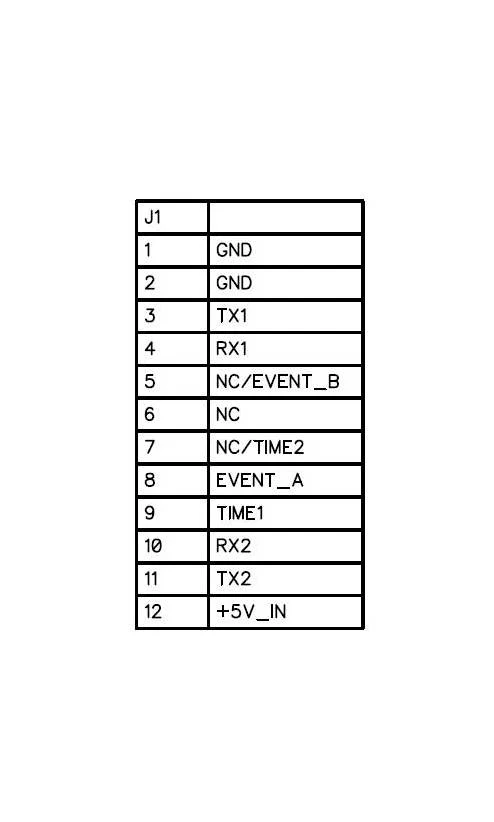

• 12-pin JST SH connector
• 2 UART (3.3V), one with hardware flow control interface
• EVENTA, EVENTB external event inputs (3.3V)
• Two PPS outputs (3.3V)
• Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 26x39 mm
• Weight: 10 gr.
• Fully assembled, tested and ready to use

WARNING: RX and EVENT inputs shall not be driven while input supply not present.

---
